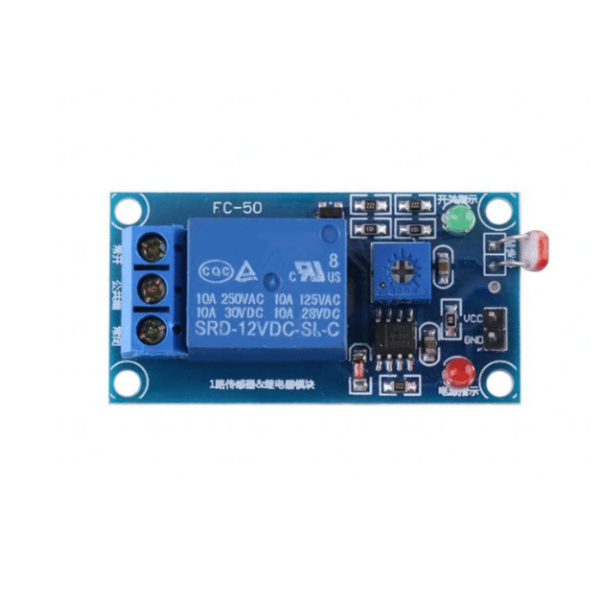

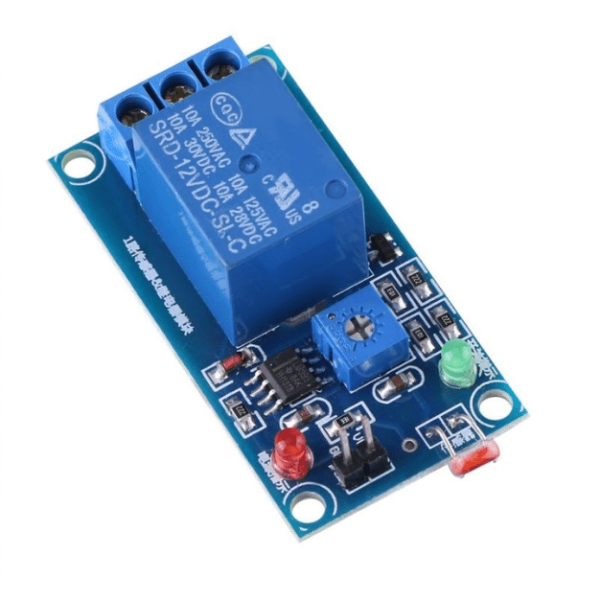

DC 12V Light Control Switch – Photoresistor Relay Module
₵20.00Original price was: ₵20.00.₵18.00Current price is: ₵18.00.
The DC 12V Light Control Switch Module with a built-in photoresistor (LDR) is a smart relay module that automatically switches devices on or off based on ambient light levels.
The DC 12V Light Control Switch Module with a built-in photoresistor (LDR) is a smart relay module that automatically switches devices on or off based on ambient light levels. Ideal for energy-saving applications such as street lights, garden lamps, or solar-powered systems, this module activates a connected load when it gets dark and deactivates it during daylight.
Simple to use and compatible with various loads, the module offers plug-and-play functionality for automation projects, hobby electronics, and lighting control systems.
Key Features
Automatic Light Detection: Uses a photoresistor (LDR) to detect ambient brightness
Relay Output: Controls AC or DC loads automatically based on light levels
High Sensitivity: Adjustable detection threshold via onboard potentiometer
LED Indicators: Visual feedback for power and relay status
Isolation Design: Optocoupler isolation for improved safety and signal integrity
Plug-and-Play: No programming required — just connect and configure
Technical Specifications
Parameter
Value
Operating Voltage
DC 12V
Relay Contact Rating
10A @ 250VAC / 10A @ 30VDC
Detection Type
Light-dependent (photoresistor)
Output Type
Relay (NO/NC terminal)
Adjustment
Sensitivity via potentiometer
Trigger Condition
Darkness / Low light (adjustable)
Dimensions
Approx. 50mm × 26mm × 18mm
Package Includes
1 × DC 12V Light Control Switch Module with Photoresistor (Relay-Based)
